Positioning Surfaces from the Main Interface
Patchwork 3D Design includes an area in its interface specifically for editing the positions of surfaces. This editing area is beneath the 3D viewports in the workspace. It allows for directly entering numerical values for the position of surfaces relative to axes X, Y and Z.
Figure 14 : Editing area dedicated to surface positioning.
The toggle button Enable user input for absolute coordinates
in the toolbar is for displaying or hiding this editing area. Entering numerical values for these parameters is only possible when a surface is selected.
Coordinates in World Reference Frame
The Coordinates in World Reference Frame box is for specifying the surface’s translation coordinates (TX, TY, and TZ) and the rotation orientation (RX, RY, and RZ) of the selected surface’s pivot relative to the World frame. The selected surface remains fixed relative to its own pivot.

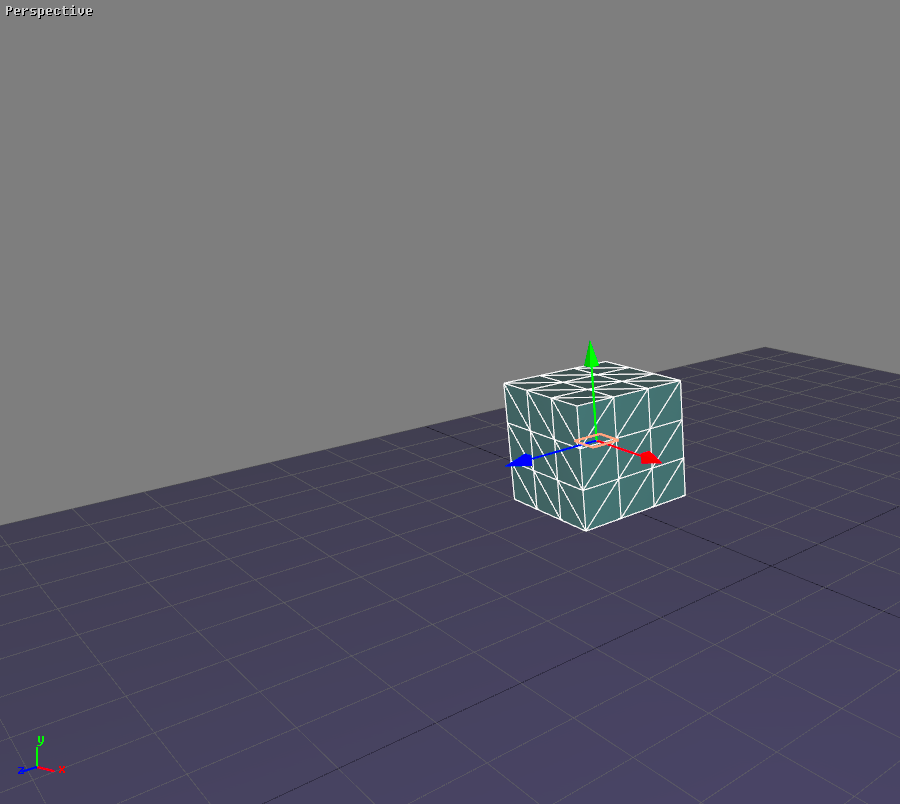

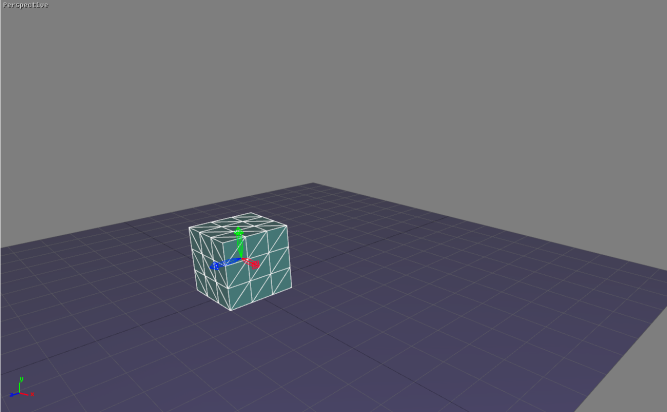

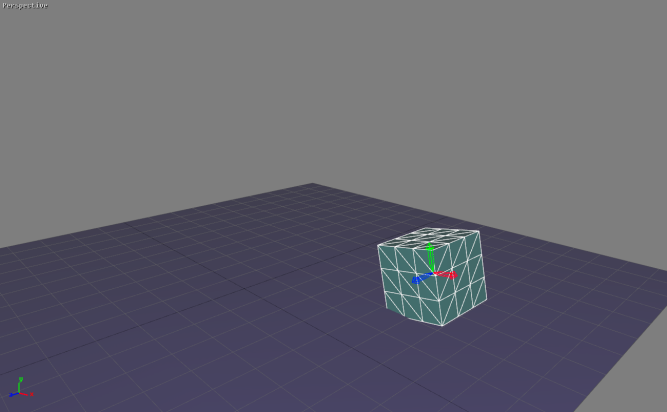

Figure 15 : Top left: initial position of the cube’s pivot. Top right: intermediate position of the cube’s pivot after entering coordinates TX=0.5 m and TZ=-0.3 m. Bottom: final position of the cube’s pivot after entering angular coordinate RZ=10°.
Figure 16 : Coordinates in World Reference Frame box for the final position of the pivot shown in the previous figure.
Coordinates Relative to Parent's Pivot
The Coordinates Relative to Parent's Pivot box is for specifying the position coordinates (TX, TY, and TZ) of the pivot’s origin and the angular coordinates (RX, RY, and RZ) of the pivot for the surface selected relative to the pivot of its parent in the kinematics chain.
When no parent is defined for the surface selected, the values entered are considered to apply to coordinates in the world frame reference like in the first box.

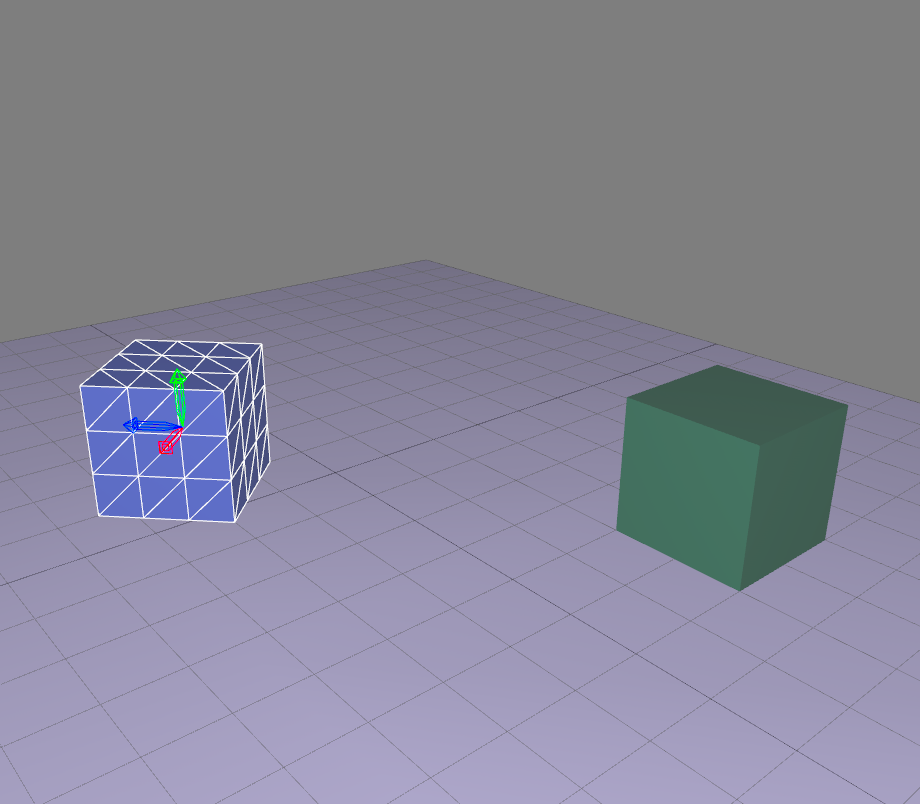

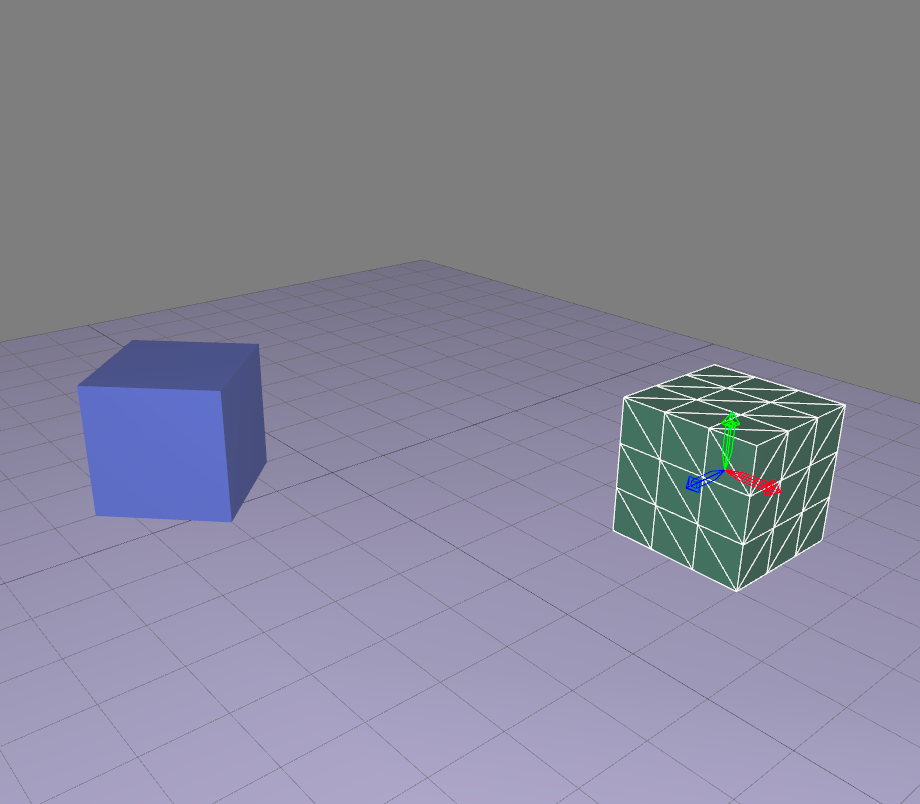

Figure 17 : Positioning the blue cube's pivot relative to the parent surface's pivot, the green cube’s. The entered coordinates are displayed in the Coordinates Relative to Parent's Pivot box.
Relative Translation and Rotation
The function Enable user input for relative rotation or translation
may be accessed only when either the Translation or Rotation gizmo is activated. It displays the Relative translation or rotation dialog box.
The value by which the surface selected is translated relative to the frame of the gizmo displayed is entered in fields TX, TY, and TZ. The value by which the surface selected rotates relative to the axes of the frame of the gizmo. The frame of the gizmo depends on the frame of reference selected.

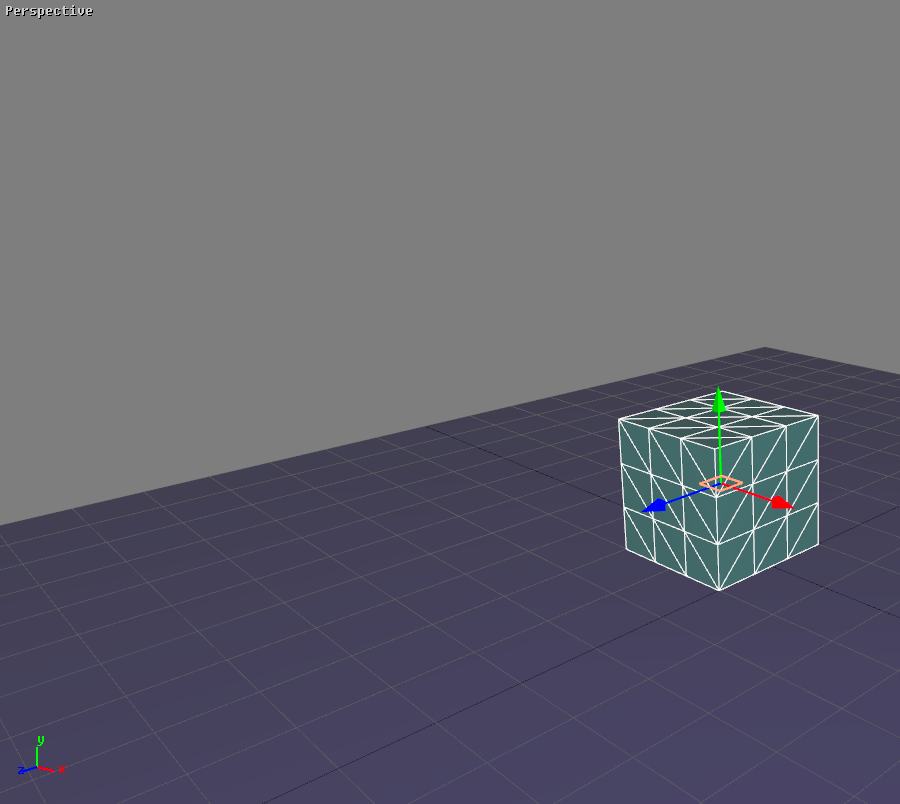

Figure 18 : The cube's translation gizmo origin is located at XX X=-0.4 m (on the left). A translation of 0.3 m in the direction of the World frame’s X axis is applied to the cube (final position on the right).
Applying a Transformation to a Selection of Surfaces
Two modes exist to apply a transformation to a selection of surfaces:
- Transform selected surfaces regarding the pivot of the leader of the selection
: the transformation is applied to all selected surfaces relative to the selection leader (displayed in white). - Transform selected surfaces regarding their own pivot
: the transformation is performed for each surface relative to its own pivot.
Figure 19 : A selection of surfaces. The selection leader is displayed in white.

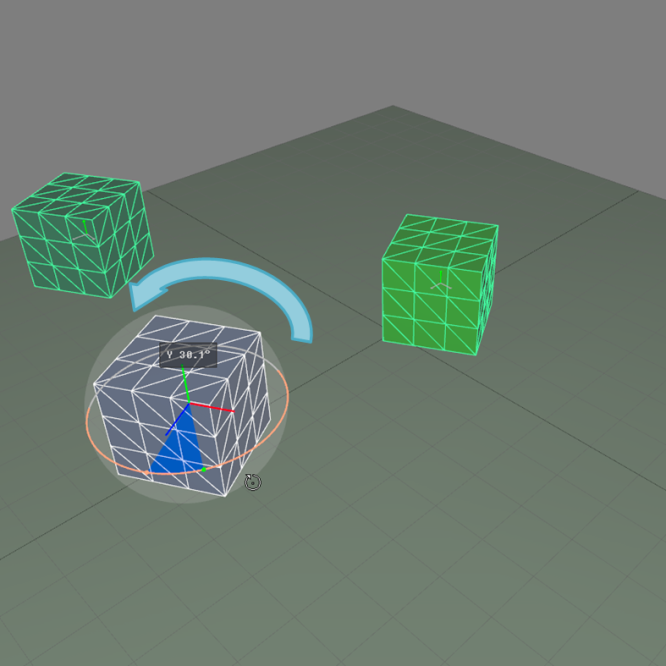

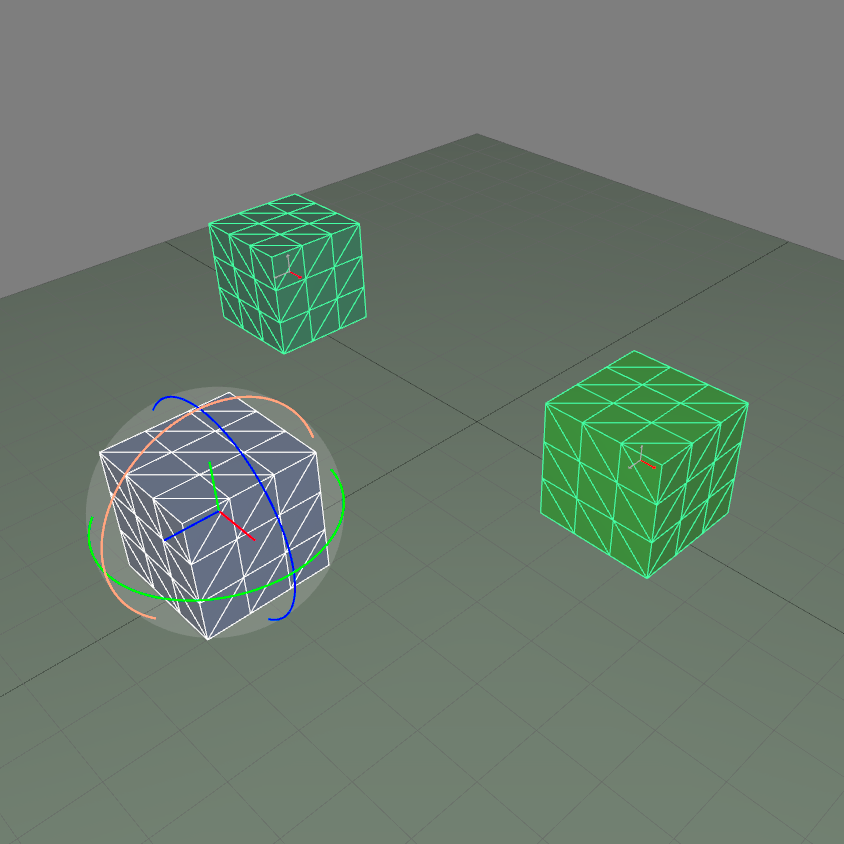

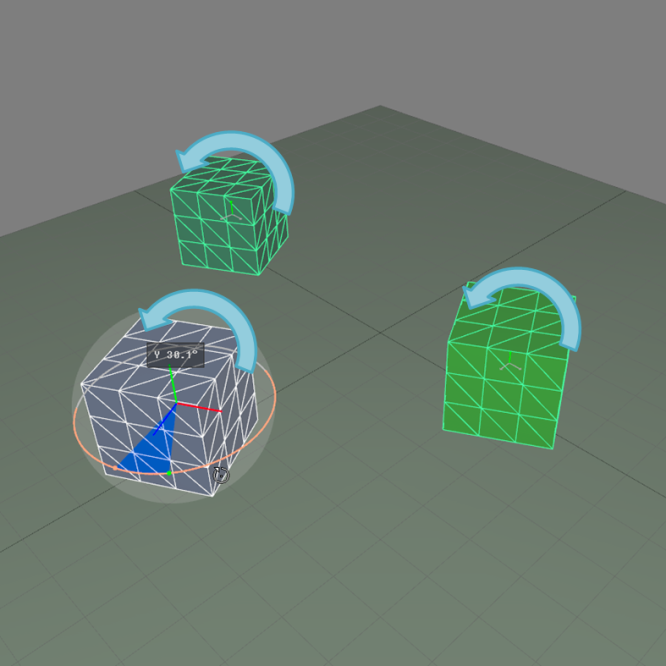

Figure 20 : Rotation applied to the surface selection presented in the previous figure relative to the selection leader's pivot (left) and relative to the surfaces' individual pivot (right).
Defining the Step Values
The box on the right side of the area dedicated to positioning surfaces allows users to define fixed increments of movement or rotation for using the gizmos while holding down the Alt key.
Figure 21 : Steps box for specifying the step values (outlined in yellow).
